Magnetofon szpulowy Teac A-2300SX Stereo reel-to-reel Made in Japan!!!

Magnetofon szpulowy Teac A-2300SX używany vintage.
Przewija
Odtwarza

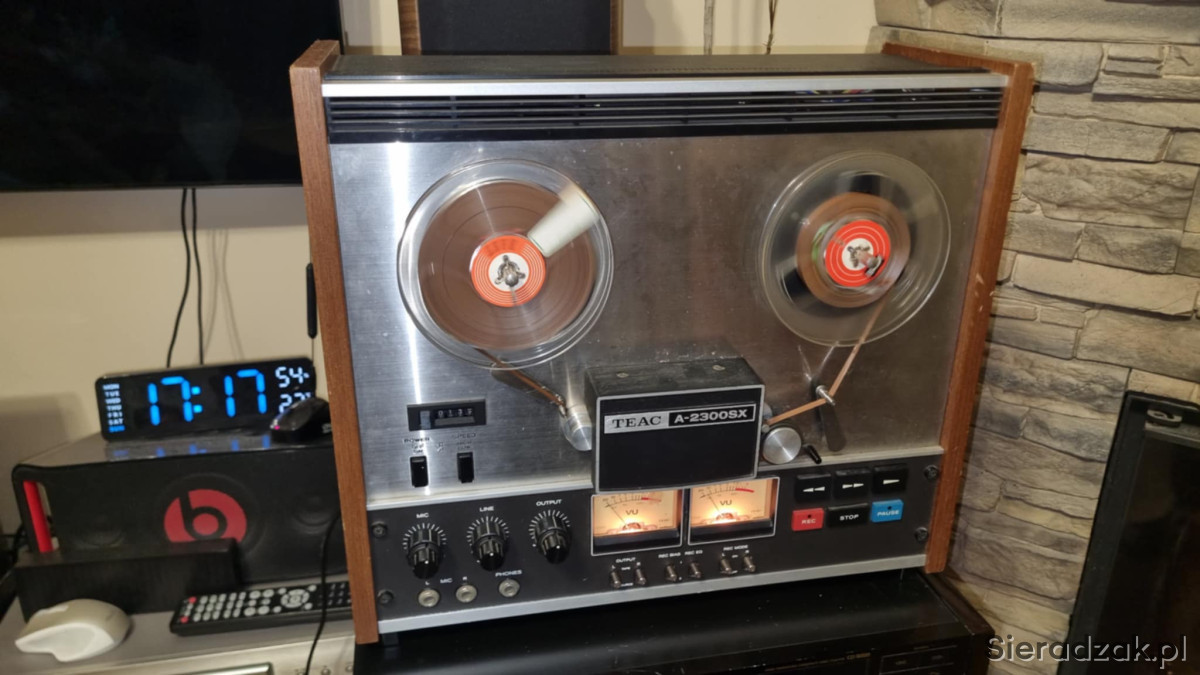

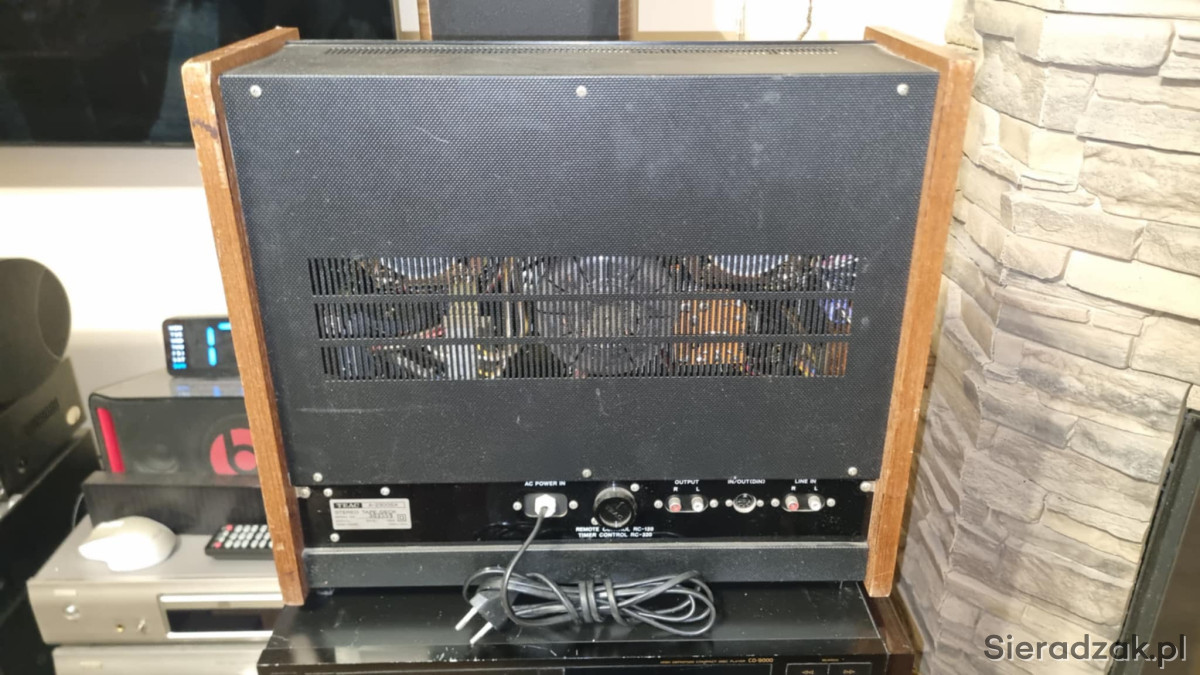

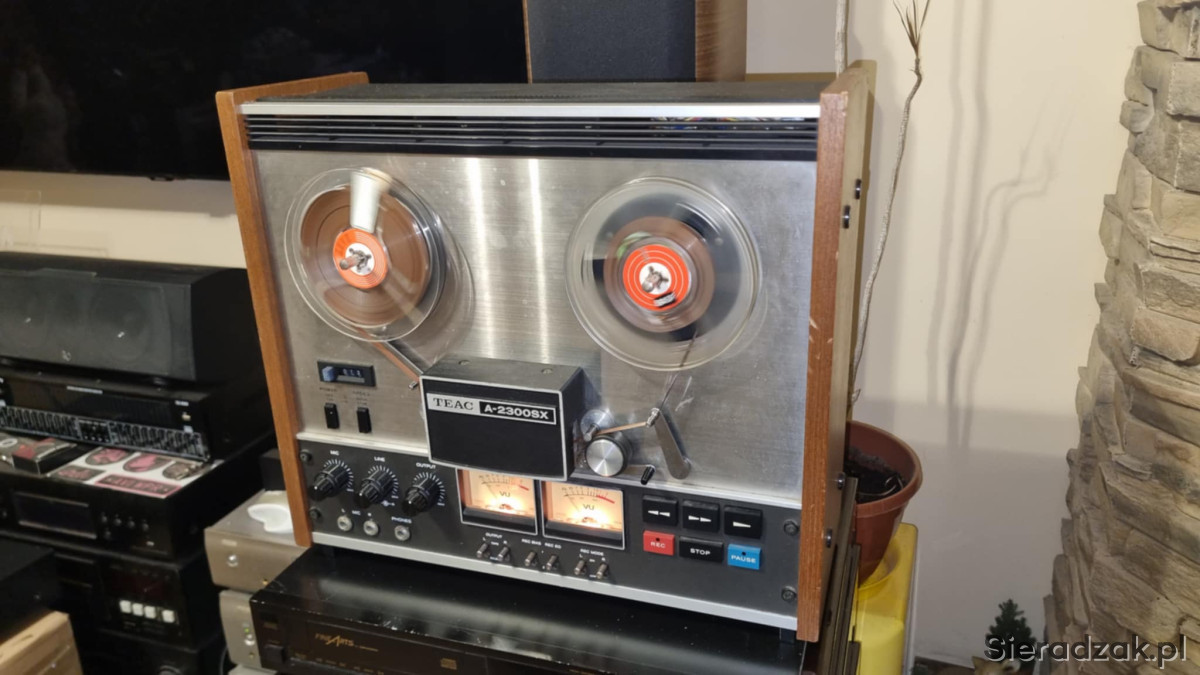

Tak jak na foto.

Teac A-2300SX

• Manufacturer: Teac
• Model: A-2300 SX
• Type: Stereo reel-to-reel tape
• Years of manufacture: 1976 - 1978
• Made in: Japan
• Color: silver / black, side panels wood
• Remote control: yes, cable remote control RC-120
• Power consumption:
• Dimensions: 440 x 392 x 210 mm (WxHxD).
• Weight: 18 kg
• Original price approx.: 109'000 Yen (Japan, 1976), 1'600 DM (trade price 1'298 DM)
• New prices accessories:Dust cover TZ-220: 3,500 yen, 60 DM.
• Cable remote control RC-120: 10,500 Yen, 160 DM
• Equipment stand: CS-420: 11,500 Yen, 170 DM

Connections

• Inputs:Microphone: 0.25 mV (0.6-10 K-ohm) -.
• Line: 100 mV (50 K-Ohm)

Radio: 10 mV (47 K-Ohm)

• Outputs:DIN: 0.3 V 10 K-Ohm) -
• Line: 0.3 V (10 K-Ohm)
• Headphones: 0.05 V (8 Ohm)

Technical Data

• 2-channel, stereo tape deck
• Max. Reel diameter: 18 cm
• Drive type: 2 eddy current winding motors and 1 hysteresis synchronous sound motor
• Head equipment: 1 recording head, 1 playback head, 1 erasing head Permaflux
• Tracks: 4
• Tape speeds: 9.5 cm/s, 19 cm/s
• Overall frequency response:at 9.5 cm/sec: 30 - 20'000 Hz
• at 19 cm/sec: 30 - 28'000 Hz

• Crosstalk attenuation at 1 kHz in stereo mode: 50 dB
• Quiescent signal-to-noise ratio at full modulation:at 9.5 cm/sec: 58 dB
• at 19 cm/sec: 58 dB

Special Equipment

• 2 VU meters, frequency linear
• Backband control left/right individually switchable
• Recording left/right individually switchable
• Recording equalization and premagnetization switchable
• Input and output left/right separately switchable
• Relay drive logic

Zapraszam do kupna.
